The last step of this whole journey is to get a USB stick prepped. Then you’re done! Re-assemble the Gotek and replace your Amiga floppy drive with it. If you are planning to replace DF0: you will need to ensure the Gotek header labeled S0 has a jumper on it. Disconnect the FTDI-232 from the Gotek PCB and remove the BOOT0 jumper.
Gotek usb floppy emulator driver mpc 2000xl Pc#
Once complete, click on the Close button of the Flash Loader program and disconnect the USB cable connecting your PC to the FTDI-232 adapter. The whole process should take about 30 seconds. The Flash Loader program will then start to load the Cortex firmware on the Gotek drive. Once you have the firmware file selected, click on the Next button. Now choose the “Download to device” option. You should not need to make any changes here. It’s showing the flash mapping and that all locations are unprotected.
The Flash Loader program now should look similar to the screen on the right. Once the Gotek firmware has been erased you’ll notice that the Flash Loader program indicates a green light now and the flash size is 128KB. There is unfortunately no way to first create a backup of the firmware to be able to restore it later if you need.Ĭlick on the OK button on the pop-up window that alerts you to wait until the Gotek is erased and reboots. Removing the copy protection will erase the Gotek drive. If the communications are working you’ll see a warning to remove the copy protection on the Gotek drive. Once that is all set, click the Next button.
Port Name: COM3 (or whatever was shown in the Device Manager) I found the following settings worked for me: You’ll be presented with the screen shown to the right.
Gotek usb floppy emulator driver mpc 2000xl install#
Once you have install the Flash Loader software, start it.
Gotek usb floppy emulator driver mpc 2000xl serial#

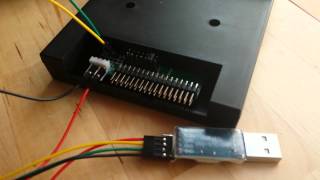

Confirm which serial port your adapter shows up as in the Windows Device Manager. Plug your PC into the USB port of the FTDI-232 adapter. the Cortex firmware: cortexamigafloppyemulator_v105a.docx.
Gotek usb floppy emulator driver mpc 2000xl software#
Once the screws are removed the PCB will be exposed. There are three screws that need to be removed. We have to take the drive out of the case and expose the PCB. Next we needed to solder header pins onto the Gotek drive PCB too. The Gotek drives are supposed to be able to handle 5V but it’s safer to use 3.3V when dealing with TTL serial. While you’re soldering those header pins, you’ll need to change the jumper that’s near the chip to 3.3V. I really just needed to solder on the 5V header pin thru-hole but I decided to put header pins in all of them. They’re popular with the Arduino crowd.įirst I needed to solder on some header pins to the FTDI-232. I picked some up at a local electronics shop. They can typically be found on eBay or Amazon. It’s essentially the same as is documented on the Cortex website, I just updated screenshots and inserted my pictures.įirst off, there are some parts that you’ll need: I have to share that I did not come up with this process. I got my hands on one from eBay and I thought I’d share the process I used to load the firmware on the drive. NOT LIKE SOME OF THESE MODERN SAMPLERS ( 1 SAMPLE PER MIDI CHANEL OR ALL SINGLE SHOT SAMPLES FROM A NON CHANGEABLE CHANNEL)įULLY EXPANDED ON BOARD MEMORY 32MB, OPERATING SYSTEM 2.USB Gotek drives have been a popular option to replace the internal 3.5″ floppy drive in many Amiga’s with something a bit less prone to failure. I USED THIS WITH MY MC303 TRIGGERED FROM A SINGLE MUTE PART. MULTI MODE LETS YOU CREATE ZONES ACROSS THE KEYBOARD FOR PITCHING MULTIPLE SAMPLES ALL OFF A SINGLE MIDI CHANNEL. “AKAI S3000XL SAMPLER 32mb GOTEK 8G USB DRIVE
